Power-Clamp-Triggered SCR for Broadband RF ESD Protection

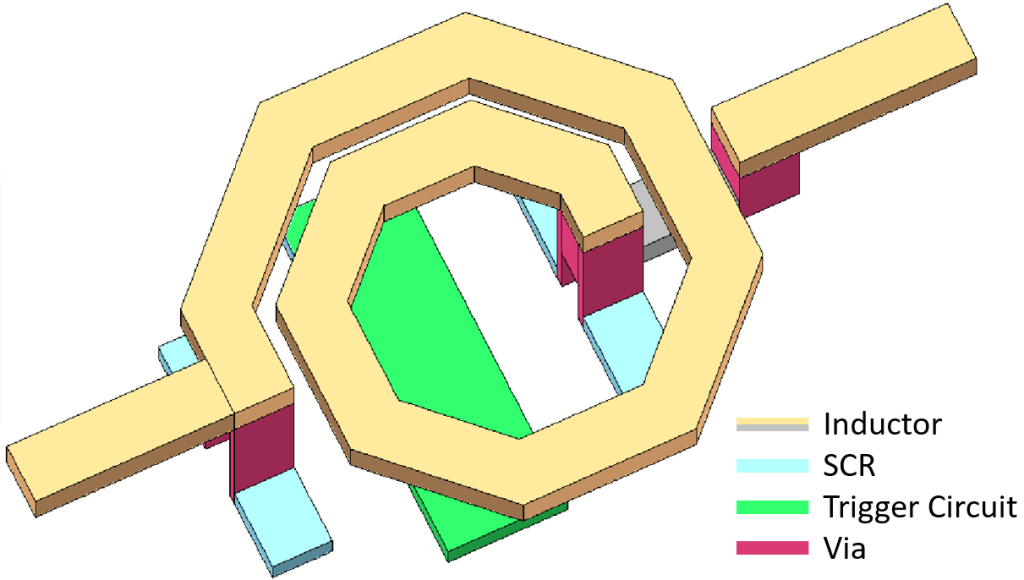

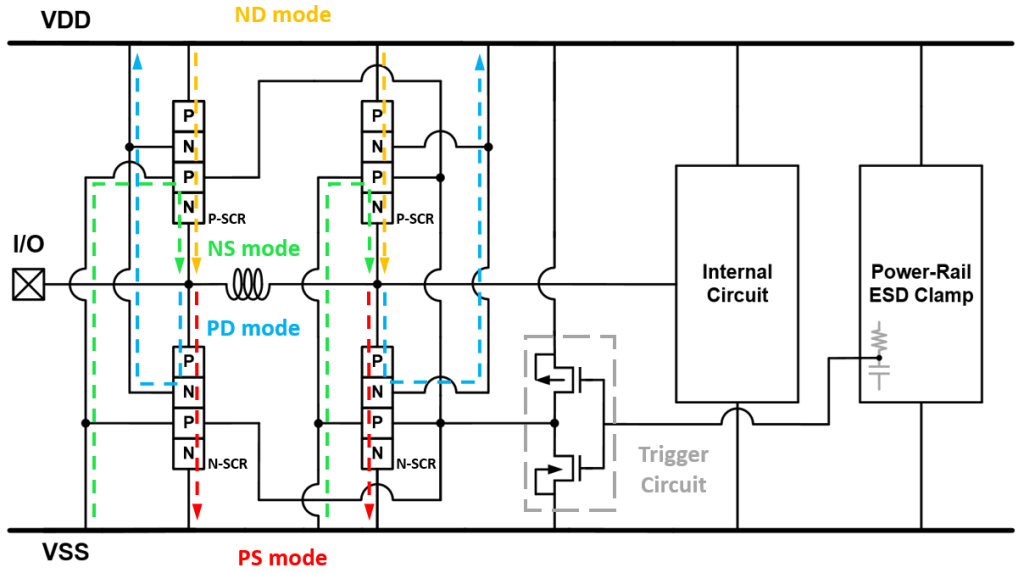

A compact electrostatic discharge (ESD) protection circuit using silicon-controlled rectifiers (SCRs) for radio frequency (RF) I /O interfaces is proposed and implemented in the TSMC 0.18- μ m CMOS process. The design ensures robust ESD protection by enabling discharge through multiple paths between the I /O pins and power rails. To mitigate the parasitic capacitance introduced by the SCRs, an inductor is integrated for compensation. As a result, the proposed circuit achieves comprehensive ESD protection while preserving high signal integrity and minimizing chip area, making it a highly efficient solution for high-frequency applications.
